Patient-ventilator Interaction and Asynchrony

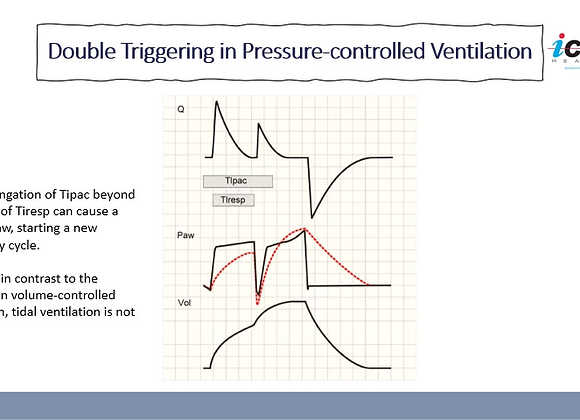

This presentation uses high quality graphs explaining different  patient-ventilator interaction and asynchrony scenarios in a systematic way. It explores the trigger, flow, and termination (cycling) assynchrony including:
Ineffective Triggering, double Triggering, auto-triggering, and reverse Triggering
Poor patient efforts and flow asynchrony
Early cycling and delayed cycling

Details & Terms:

Powerpoint presentation: total of 56 slides
Animated waveforms
Fully editable and free to use for educational purposes
Logo and names can be replaced
